Machinery for paper cups, plates and bags

Paper cup machinery (China)

GP-D

Automatic paper cup machine with an upgraded chain drive. Handles the full cycle: paper feed, side-seam bonding, bottom cutting, heating, rim curling, forming and discharge of the finished cup.

Features

• Fully automatic operation
• Quality control at every production stage
• Cups for hot and cold drinks: coffee, tea, juice, cocktails
• Modular design: fast replacement of parts

For paper heavier than 250 g/m² or with two polymer coating layers, we recommend our ultrasonic model.

Application

2.5–16 oz paper cups for hot and cold drinks.

Technical specifications

Cup size	2.5–16 oz (other sizes: change the mould)
Material	150–380 g/m², single- or double-sided PE-coated paper
Output	80–100 or 150–200 pcs/min
Power supply	220 V or 380 V, 50 Hz (state your voltage when ordering)
Power	4 kW
Compressed air	0.4 MPa, 0.6 m³/min
Dimensions, mm	2600×1350×1700
Weight	2000 kg

Request a price

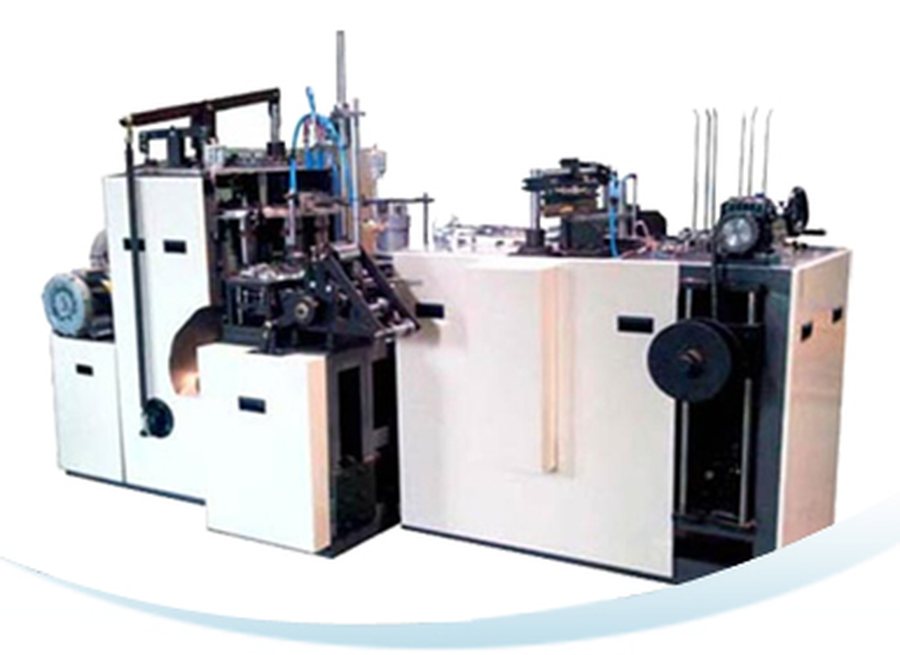

Premium paper cup lines

GP-100A, B, C, D

Lines for paper cups for hot and cold drinks, ice cream and other products. Four models cover sizes from 75 ml to 5 litres.

Features

• Easy operation, intuitive interface
• Low noise
• Economical use of materials and electricity
• Flexible setup: sizes, shapes and designs
• Specialist support during launch and operation

Application

Cups for hot and cold drinks, ice cream and more.

Technical specifications

	GP-100A	GP-100B	GP-100C	GP-100D
Cup size	2.5–9 oz (75–270 ml)	12–16 oz (360–480 ml)	22–32 oz (660–960 ml)	44–170 oz (1320–5100 ml)
Output	70–80 pcs/min	60–70 pcs/min	50–60 pcs/min	30–50 pcs/min
Material	Paperboard with PE coating on one or both sides, 170–400 g/m²
Sealing method	Hot air, heating element or ultrasonic
Power	≈10–12 kW
Compressed air	≈100–200 L/min, 2.5–5 HP
Dimensions, mm	2760×1350×1550	2900×1350×1650	3080×1350×1800	On request
Weight	2000 kg	2300 kg	2500 kg	3000–3500 kg

Request a price

Double-wall sleeve machine

GP-500D, GP-1000D

Machine for double-wall paper cups: an outer sleeve is bonded to the inner cup, adding strength and a clean finish.

Features

• Wear-resistant build for long, heavy-duty operation
• Layer thickness adjustable per order
• Precise glue dosing, minimal waste
• Easy operation, fast and reliable service

Application

Double-wall cups for noodles and hot drinks.

Technical specifications

	GP-500D	GP-1000D
Cup size	6–16 oz	18–32 oz
Output	60 pcs/min	60 pcs/min
Material	Duplex board, ivory paper, 170–300 g/m²
Sealing method	Inner cup: hot air; outer sleeve: glue
Power	≈5–10 kW
Compressed air	≈100–200 L/min, 2.5–5 HP
Dimensions, mm	2100×1600×1400	2300×1800×1600
Weight	2000 kg	2300 kg

Request a price

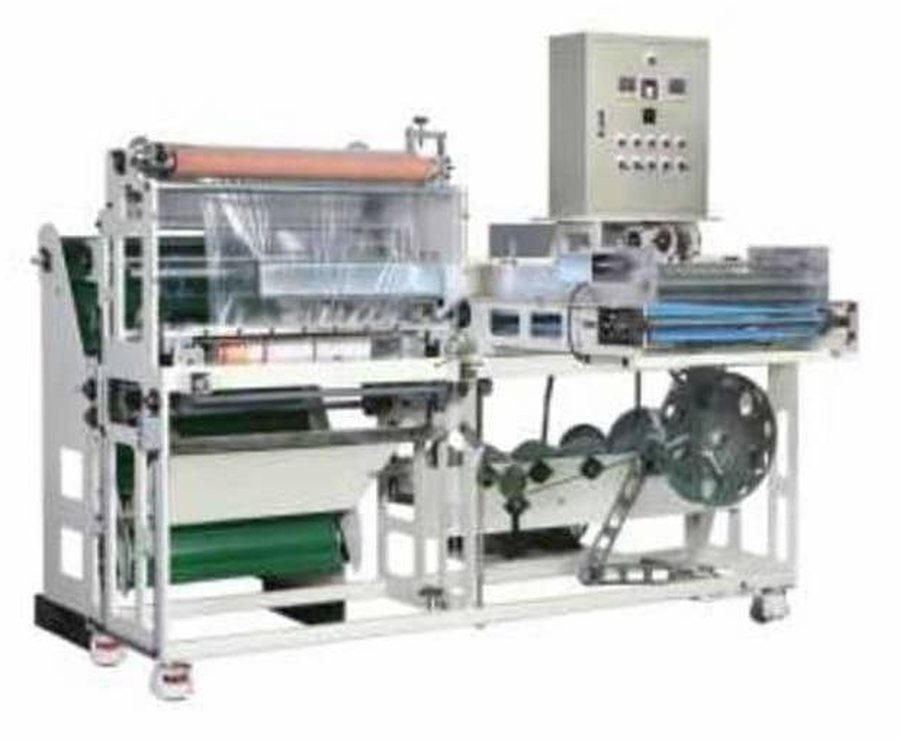

Paper cup packing machine

GP-30P

Automatic paper cup packer: fast, neat packing into film. Suits cups of various diameters and heights.

Features

• High packing speed
• Simple setup and operation
• Neat stacking preserves the look of the product
• Lower labour costs

Application

Small and mid-size producers, cafés, restaurants, beverage makers.

Technical specifications

Product	Paper cups
Output	25–30 packs/min
Packing material	PS / PP
Control system	AC servo drive, sensor
Power	≈3 kW
Compressed air	Not required
Dimensions, mm	1800×2500×1800
Weight	1000 kg

Request a price

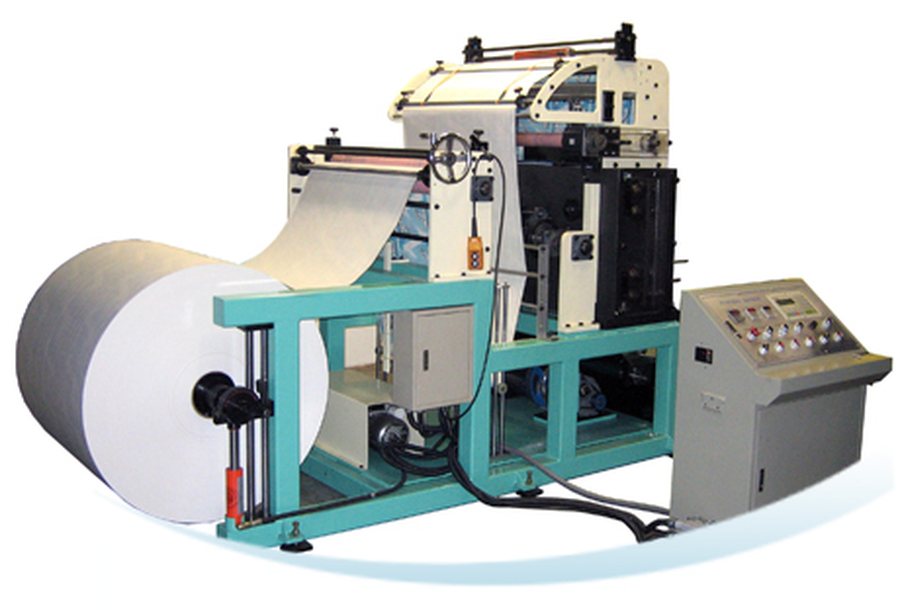

Die-cutting machine

GP-300RP

High-precision machine for serial die-cutting of paper cup side blanks. Automates cutting with minimal operator input and reduces material use.

Features

• Precise positioning: clean cut without edge deformation, fewer defects at assembly
• Handles paperboard of various weights, including laminated and combined materials
• Speed designed for continuous industrial lines
• Reinforced steel frame and wear-resistant parts, long service interval
• Die layout cuts technological waste
• Easy operation, fast and reliable service

Application

Die-cutting side blanks for paper cups.

Technical specifications

Purpose	Paper cups
Max. width	980 mm
Paperboard	PE-coated: 1PE and 2PE
Board weight	170–400 g/m²
Control system	EPC, tension control, AC servo, inverter, photo sensor, sensor
Output	up to 300 rpm
Power	≈5–8 kW
Compressed air	2–5 HP
Dimensions, mm	2500×1400×1800
Weight	2000 kg

Request a price

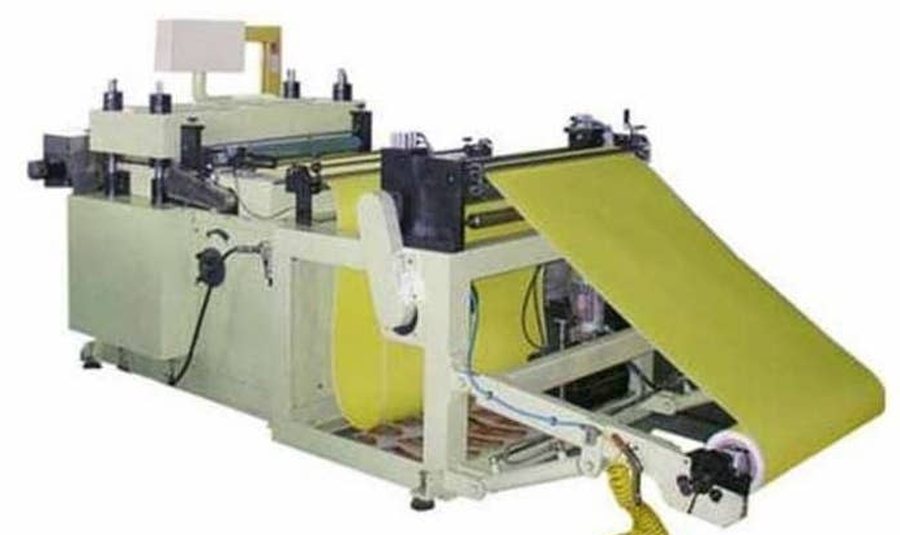

Horizontal roll-fed die-cutter

GP-80DC

Equipment for horizontal die-cutting from paperboard rolls. Modern cutting and automation mechanisms ensure accuracy and uninterrupted operation.

Features

• Modern technology: high processing speed and quality
• Minimal waste: optimised cutting layout reduces material loss
• Easy operation, intuitive interface
• High output and fast payback

Application

Packaging, printing, advertising and paper products. Suits large plants and small workshops.

Technical specifications

Purpose	Paper cups, plates, burger boxes, etc.
Max. die-cut format	800×600 mm
Output	up to 80 strokes/min
Material	PE-laminated paper, aluminium-layer paper
Board weight	170–400 g/m²
Control system	Tension control, AC servo, inverter, photo sensor
Power	≈5–8 kW
Compressed air	Not required
Dimensions, mm	3000×1800×1700
Weight	3000 kg

Request a price

Flexographic printing machine

GP-300FP

Flexographic machine combining printing and die-cutting for paper cups and other paper tableware. Branded packaging with sharp images and logos.

Features

• 2 to 5 colour printing, sharp images and logos
• Very low ink consumption
• High speed and lower unit cost
• Adaptable to different papers and formats
• Minimal operator involvement
• Compact, ergonomic design

Application

Printing and die-cutting blanks for paper cups and other tableware.

Technical specifications

Printing type	Flexo, 2–5 colours, doctor blade chamber system
Max. width	980 mm
Paperboard	PE-coated: 1PE and 2PE
Board weight	170–400 g/m²
Control system	EPC, tension control, AC servo, inverter, photo sensor, sensor
Output	up to 300 rpm
Power	≈10–25 kW
Compressed air	2–5 HP
Dimensions, mm	6000×2000×2800
Weight	3500 kg

Request a price

Paper plate making machine

GP-500

Automatic machine for paper plates, in demand among cafés, restaurants and consumers.

Features

• Modern technology: high quality and output
• Easy maintenance: convenient control and automation
• Variety of shapes and designs: tailor to the market
• Low material and electricity costs
• Engineer support throughout the machine's life

Application

Paper plates for cafés, restaurants and retail customers.

Technical specifications

Plate size	4–14 inch
Output	100–140 pcs/min
Material	140–2000 g/m², plain or PE-coated paper
Power supply	380 V, 50 Hz
Total power	9.0 kW
Compressed air	0.1 m³/min
Packed size (L×W×H), mm	3000×1700×1700
Weight	2000 kg

Request a price

Square-bottom paper bag machine

GP-QFB21

High-output automatic machine for square-bottom paper bags with flat handles. Raises output and cuts operating costs.

Features

• Materials: paper rolls, rolls with pre-applied patches and ready-made handles
• Fully automatic: blank cutting, handle fitting, bottom and tube forming
• Automatic count of finished bags
• Less labour needed, fast payback

Application

Food industry, clothing and footwear, cosmetics and household chemicals.

Technical specifications

Paper roll width	630–1510 mm
Max. roll diameter	φ1500 mm
Core diameter	φ76 mm (3")
Paper weight	90–150 g/m²
Paper tube length	400–770 mm
Bag body width	220–540 mm
Bag bottom size	80–200 mm
Flat handle: height	100 mm
Flat handle: width	16 mm
Handle paper roll: width	93 mm
Handle paper roll: diameter	φ800 mm
Handle paper weight	80–110 g/m²
Handle patch: length	170 mm
Handle patch: width	52 mm
Patch roll: diameter	φ800 mm
Patch roll: width	170 mm
Patch paper weight	80–110 g/m²
Max. speed	120 bags/min
Total power	29 kW
Total weight	≈21000 kg
Dimensions, mm	16000×3000×2500

Request a price

Flat-handle paper bag machine

GP-QFB14

Automatic machine for paper bags with a convenient flat handle. Suits new entrepreneurs and experienced companies expanding their range.

Features

• Speed and reliability: up to 140 bags per minute
• Sturdy build, long service life, low running costs
• Intuitive interface, simple operation
• Paper as the main material: eco-friendly packaging

Application

Flat-handle paper bags for retail and delivery.

Technical specifications

Paper roll width	570–1170 mm
Max. roll diameter	φ1500 mm
Core diameter	φ76 mm (3")
Paper weight	80–150 g/m²
Paper tube length	350–650 mm
Bag body width	200–360 mm
Bag bottom size	80–200 mm
Flat handle: height	75 mm
Flat handle: width	13 mm
Handle paper roll: width	101 mm
Handle paper roll: diameter	φ800 mm
Handle paper weight	70–100 g/m²
Handle patch: length	160 mm
Handle patch: width	52 mm
Patch roll: diameter	φ800 mm
Patch roll: width	160 mm
Patch paper weight	80–110 g/m²
Max. speed	140 bags/min
Total power	29 kW
Total weight	≈20000 kg
Dimensions, mm	16000×3000×2500

Request a price

V-bottom paper bag machine, up to 900 mm

GPJ13

Autonomous machine for V-bottom bags from roll paper: smooth and embossed kraft, water-repellent coated paper, medical grades and more. The cycle runs from roll feed to stacking finished bags.

Features

• Whole cycle autonomous: side seams, bag forming, bottom closing
• Simple, reliable operation
• High output and stability
• Minimal manual work, no constant operator attention

Values are indicative: speed, reject rate and working range depend on operator skill, temperature and humidity, paper type, weight and size, and glue grade and quality.

Application

Bags for snacks, food storage, bakery delivery, dried fruit and nuts.

Technical specifications

Paper roll width	160–900 mm
Paper weight	35–80 g/m²
Bag body length	120–720 mm
Bag body width	80–330 mm
Gusset depth	0 and 12–60 mm
Side fold range	0 and 24–120 mm
Film thickness (optional unit)	0.01–0.03 mm
Film width (optional unit)	50–200 mm
Max. speed	500 bags/min
Total power	20 kW
Total weight	5500 kg
Dimensions, mm	8500×2100×1900

Request a price

V-bottom paper bag machine, up to 730 mm

GPJ10

High-tech machine for industrial production of strong V-bottom paper bags: kraft, coated, medical paper and more.

Features

• Full cycle automatic: from roll feed to finished bag
• Different paper grades for different needs
• Easy to learn, minimal staff intervention
• Maximum use of raw material

Values are indicative: speed, reject rate and working range depend on operator skill, temperature and humidity, paper type, weight and size, and glue grade and quality.

Application

Bags for bakery goods, snacks, dried fruit, confectionery and other food products.

Technical specifications

Paper roll width	160–730 mm
Paper weight	35–80 g/m²
Bag body length	120–450 mm
Bag body width	80–270 mm
Gusset depth	0 and 12–60 mm
Side fold range	0 and 24–120 mm
Film thickness (optional unit)	0.01–0.03 mm
Film width (optional unit)	50–200 mm
Max. speed	450 bags/min
Total power	16 kW
Total weight	5500 kg
Dimensions, mm	8500×1800×1900

Request a price
